C. G. Conn factory images

Images of the C. G. Conn band instrument factory.

circa. 1911

Shown in numerical order, we thought we would share these very interesting images from the collection of Daniel Oberloh that depict the working environment at the Conn factory, early in the twentieth century. We have done our best to clean them up and resize them for better viewing. These images are from the post card serries originally offered by C.G. Conn of there newly built factory in Elk Hart Indiana c.1911.

A big THANK YOU to our friend James Reid for providing his collection of post cards and allowing us to display the complete set. Sorry if there are some errors in the text, our day job is repairing and restoring band instruments, we are not English majors. This stuff is done for fun, after hours. You got a problem with it? Instead of sitting on your duff enjoying what we have to offer, do the work yourself and build your own web site! (snicker).







A brand spanking new factory to replace the previous one that burned down.

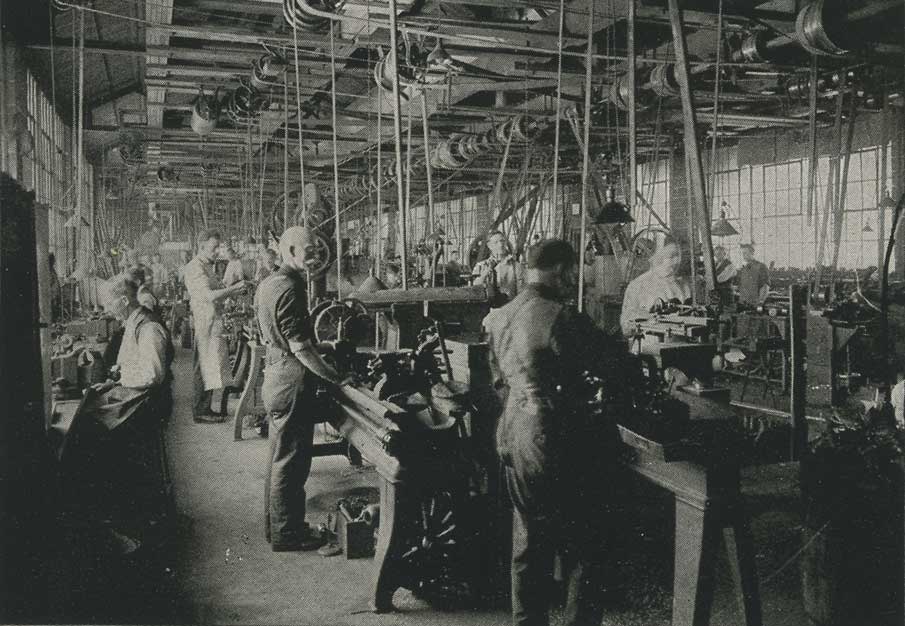

Creating band instruments requires a great number of special tools, forms and jigs. The Machining department is where most of the tooling is made to order.







These are the machines that make parts like valve cap, stems and finger buttons.

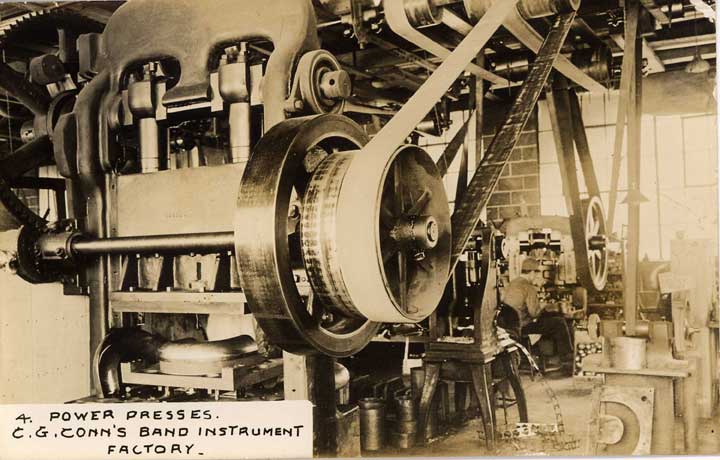

Back then, large presses were fitted with custum dies that stamped out sheets of brass into the rough parts of sub-assemblied. This press is stamping out one of the half sections for a tuba bottom bow.







Making mouthpieces, lots of mouthpiecse.

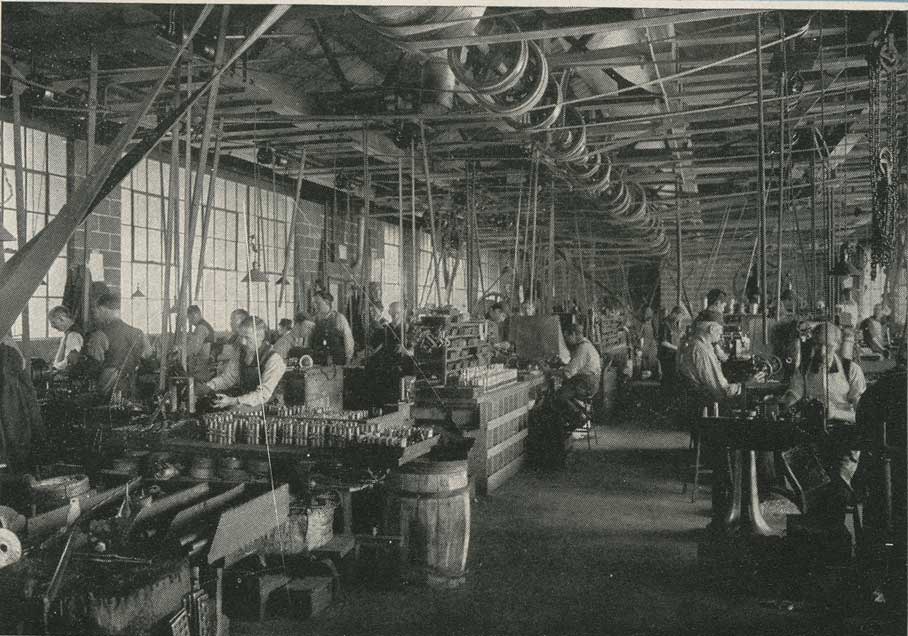

The "valve department", where many small pieces are made and put together creating the valve assemblies for all brass instruments.

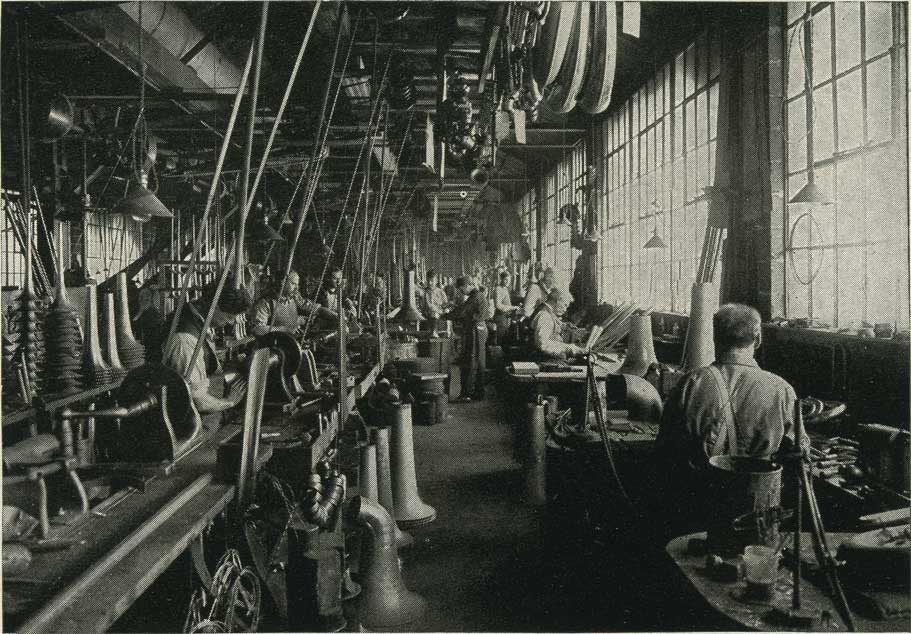

The "Bell Spinning department" is where brass instrument bells are formed on spinning-lathes. The process is one that calls for a high degree of skill.

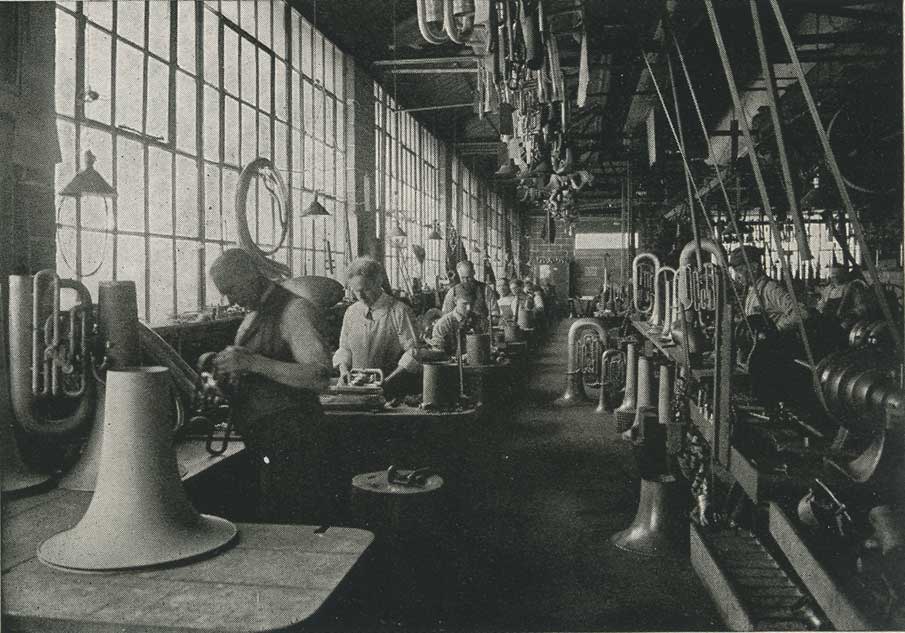

Assembling tubas, euphoniums,... all the big iron.

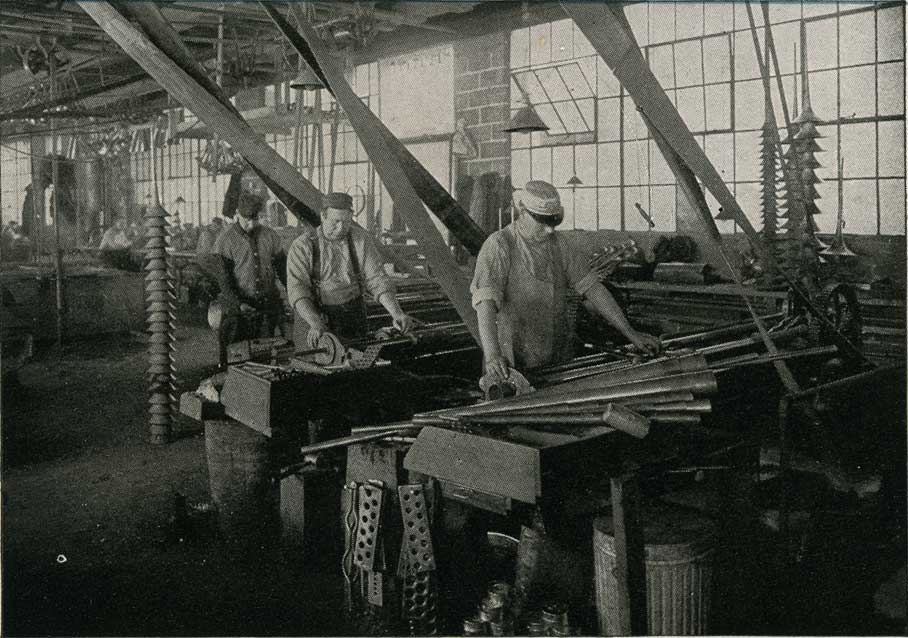

Draw benches are used for extruding brass tubes to the desired size and taper.

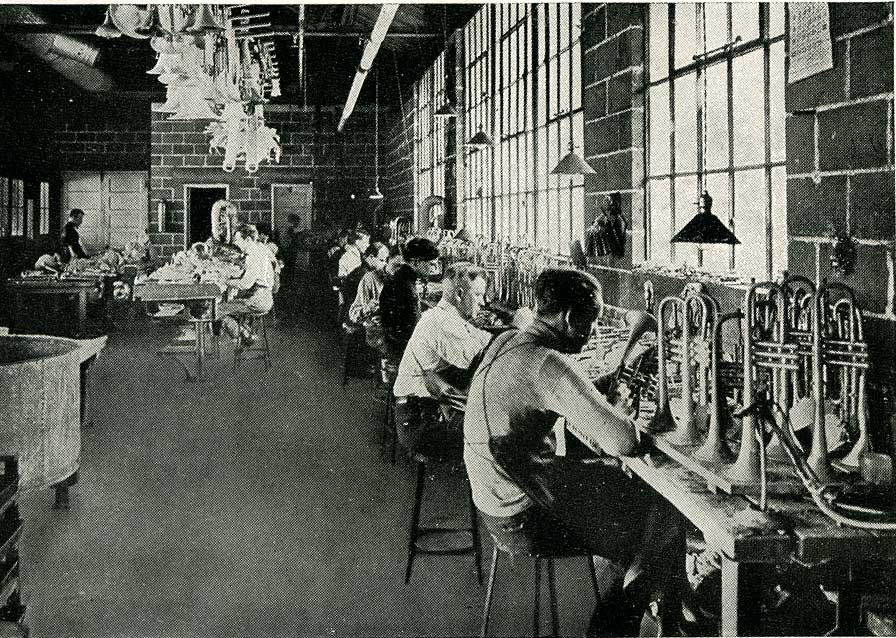

Assembling trumpets and cornets.







making maccaroni (sp?).

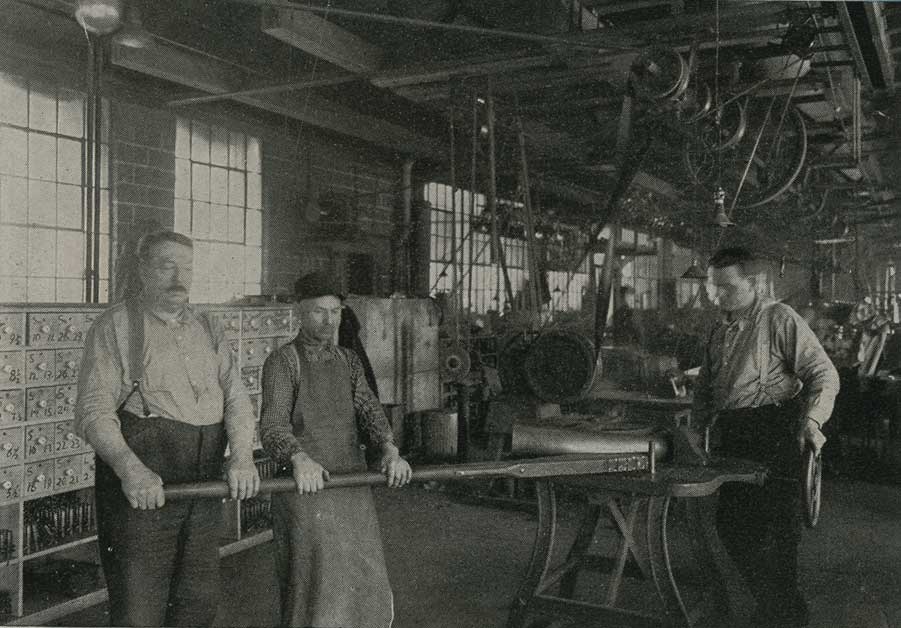

With the use of a large cheater-bar, the large lead filled branch of a helicon bass (marching tuba) is accurately bent to the proper radius.







r Smaller branches, like those on french horns and baritones were also filled with lead and bent to the desired radius. The "Bending Department" is where large bows, branches and bells are..well..bent. Seen here is where the ripples that occur during the process are hammered and burnished out.







The magical trombone department.







Unlike today when you have local repair and restoration shops (like Oberloh Woodwind and Brass Works), there was a time when getting a brass instrument repaired ment shipping it to a manufacturer in the mid wetern US.







Filling the branches and bells with lead keeps them from kinking during the bending process.







Yup, they gotta come from somewhere.

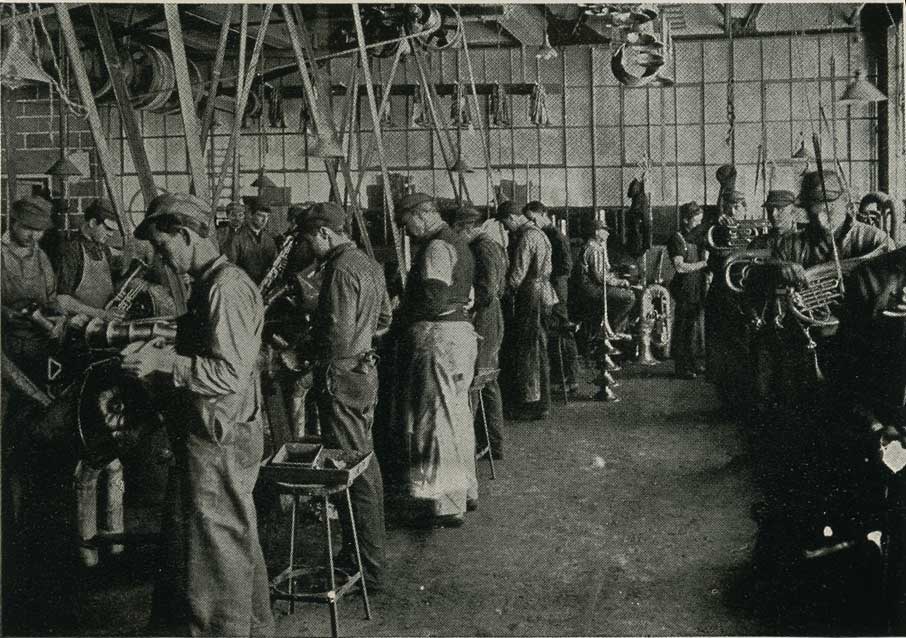

Once it is together, it's ready for polishing. Here is a shot of the "Buffing Department". Very dirty work.







Strapping horns is the process that polishes the brass in all the tight spots. Mmm, good times.

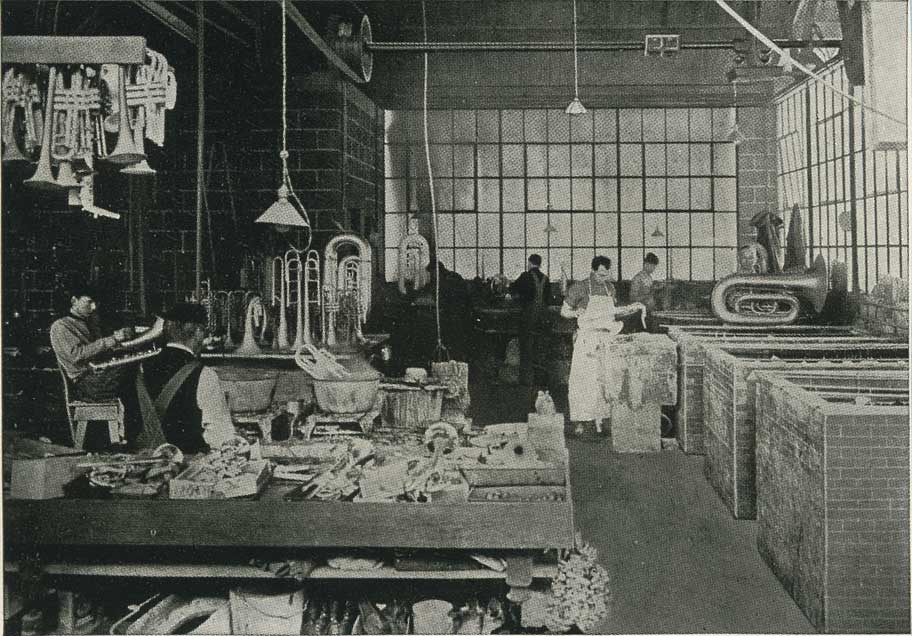

After polishing and buffing instruments that are to be nickel, silver or gold are sent to the plating department.

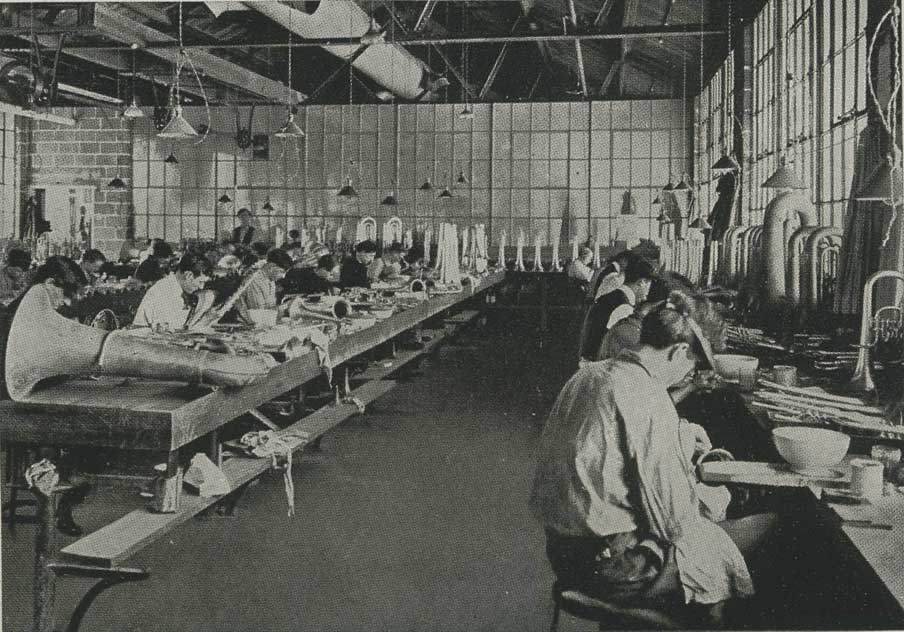

Back in the day, Conn had a huge engraving department that was always a bottle neck in the production. Unfortunately, this was cut back quite a bit when the new owners took over around 1917. Standing to the left in the back of the room looks to be Connıs famous engraver Julius Stenberg. And in the back right corner is most probably his brother Charles aka ³Doc² who worked at C. G. Conn nearly there entire lives (from the 1880s to the 1950s).







Trumpets and cornets, Once all the parts are made its time to put them together.







Many parts are cast from molton brass and nickel-silver. Parts like clarinet, bassoon and sax key levers as well as percusion and banjo hardware.







In 1911, electricity was still new and worth showing off.







In winter time; warm and comfortable workers are happy workers.







Boilers make steam, stam powers the generators that make the electricity that makes the machines go. Very modern... for 1911.







How many manufacturers make there own cases today?







Case shells, drum shells... Same dept.







On the factory floor, Women in the work place???... GASP!







Compared to the rest of the factory, it looks like they were just dabbling in luthier work.







Flute work is much cleaner.







Clarinet work is too. I donıt think I want to do brass anymore!







Thats it, I wanna do woodwinds from now on!!! There dept. is nicer!!! Waaaa!!







Eh, drums.







I guess they found a real day gig .







Testing? Looks pretty quite in there to me.







Before cardboard boxes.







Before cell-phones, computers, telavision, radio, ball-point-pens...







Whats a stenograph? I bet it was cool in 1911







Scalple... No.. Say cheese.







Eight by ten please.







Blah, blah, blah...







Continued: Blah, blah, blah...







ZZZZZZZZZZZZZZZZZZZZZ..... Mr. Conn, sir?

We hope these images are of interest to our visitors. We will try to add more images in the future as time allows.
